The BW series is an aromatic polyamide composite membrane element for brackish water desalination. It has the characteristics of high water production and good desalination performance. In addition, it has high performance in removing soluble salts, TOC, and SiO 2, and is especially suitable for the making of
highly purified water in the electronics and power industries.
It is suitable for desalination treatment of surface water, groundwater, tap water, and municipal water with salt content less than 10,000 ppm. It is mainly used for industrial pure water of various scales, boiler feed water of power plants, and other industrial water. It can also be used for the treatment of brackish water applications such as high-concentration saline wastewater and beverage water manufacturing.In the
FR series, the surface of this membrane was treated by special technology, which changed the electric charge and smoothness of the membrane surface, increased the hydrophilicity of the membrane surface, thus reducing the contamination of pollutants and microorganisms on the membrane surface, and
achieving the purpose of reducing the contamination of membrane components and prolonging the service life.
It is mainly used in various ffelds of industry, such as pure water, boiler recharge water, food processing and pharmaceutical manufacturing.
Model |
Membrane ft2(m2) |
Average Permeate GPD (m3/d) |
Stable Rejection % |
Min. Rejection % |
RM-BW-4021 |
36 (3.3) |
950 (3.6) |
99.5 |
99 |

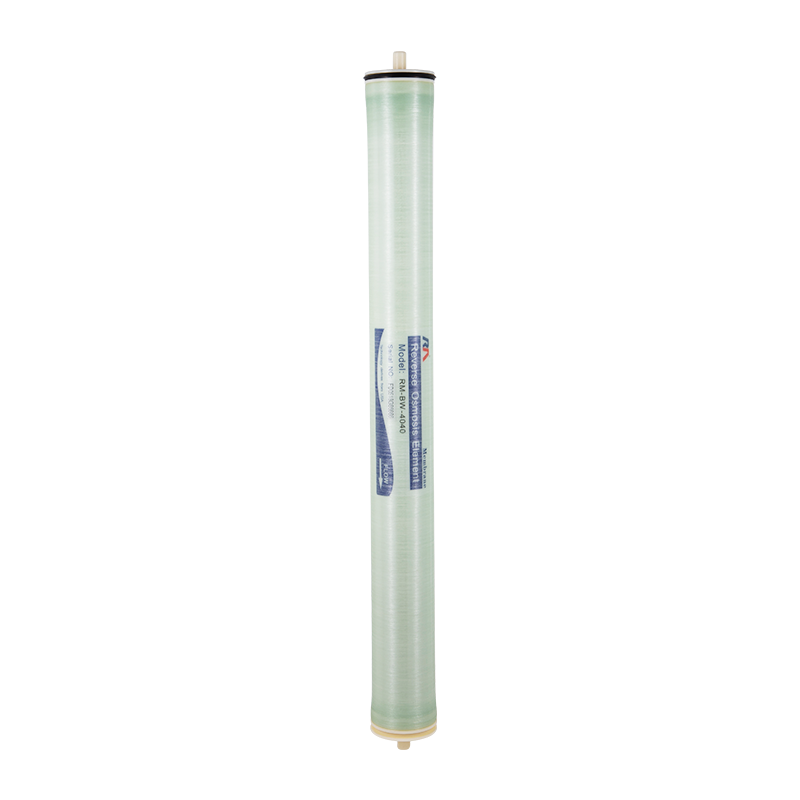

RM-BW-4040 |
85 (7.9) |
2000 (7.6) |
99.5 |
99 |

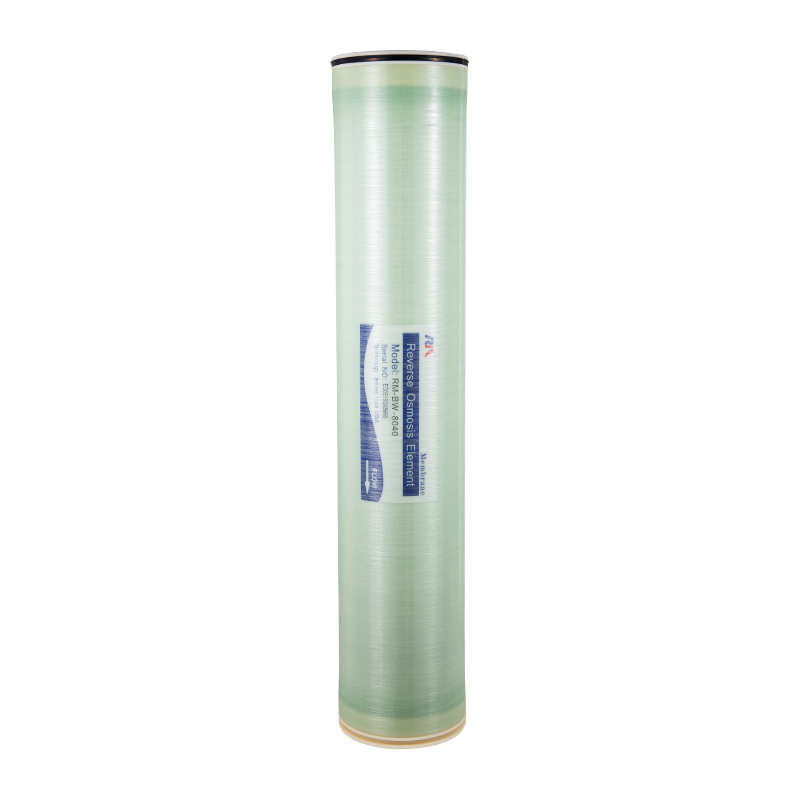

RM-BW-8040 |
400 (37) |
10500 (39.5) |
99.5 |
99 |

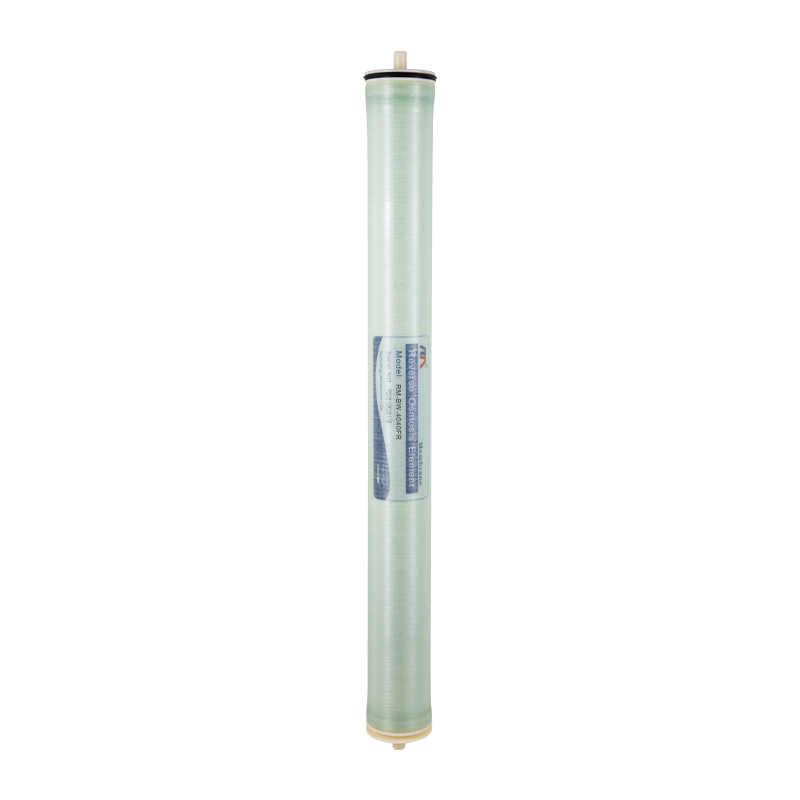

RM-BW-4040FR |
85 (7.9) |
1900 (7.2) |
99.6 |
99 |

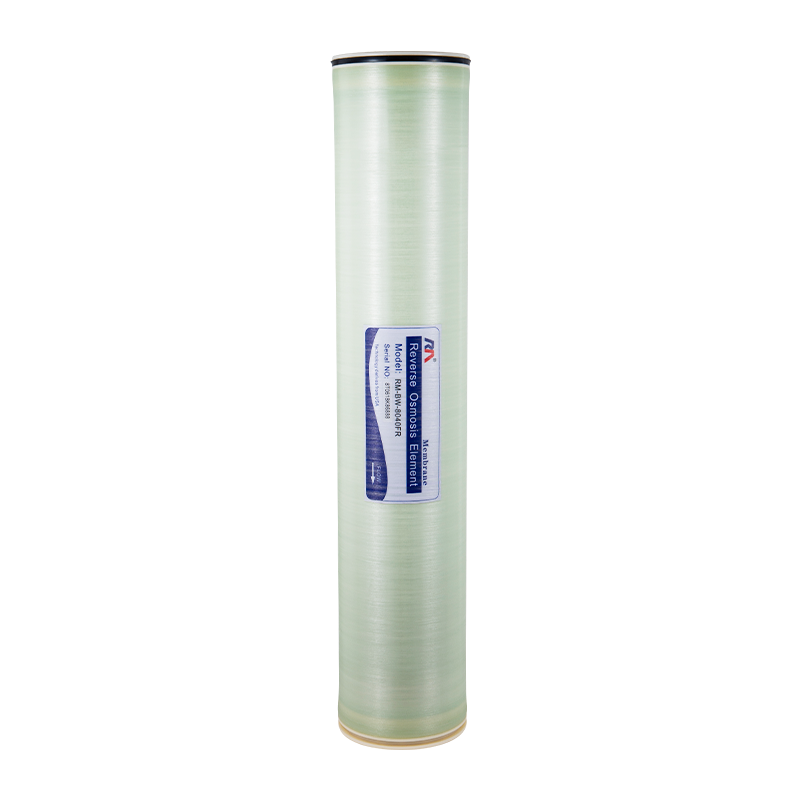

RM-BW-8040FR |
400 (37) |
9500 (36) |
99.6 |
99 |
Testing Pressure |
225 psi (1.5MPa) |
Temperature of Testing Solution |
25 ℃ |
Concentration of Testing Solution (NaCl) |
2000ppm |
pH Value of Testing Solution |
7.5 |
Recovery Rate of Single Element |
15%(8040、4040、2540);8% (4021、2521) |
Max. Working Pressure |
600psi(4.14MPa) |
Max. Feed Water COD |
10ppm |
Max. Feed Water Flow |
75gpm(17 m 3 /h)For 8040 16gpm(3.6 m 3/h) For 4040、4021 |
Max. Feed Water BOD |
5ppm |
Max. Feed Water TOC |
10ppm |
||
Max. Feed Water Temperature |
45℃ |
Residual Chlorine Concentration of Feed Water |
< 0.1ppm |
Max. Feed Water TDS |
5000ppm |
pH Range of Feed Water During Continuous Operation |
2 ~ 12 |
Max. Feed Water Hardness |
60ppm |
Max. Pressure Drop of Single Element |
15psi(0.1MPa) For8040、4040 10psi(0.07MPa)For4021 |
Max. Feed Water SDI 15 |
5 |
||
Max.Turbidity NTU |
1 |
