UF(Ultrafiltration) Membranes(PAN)

Download
Brief Introduction

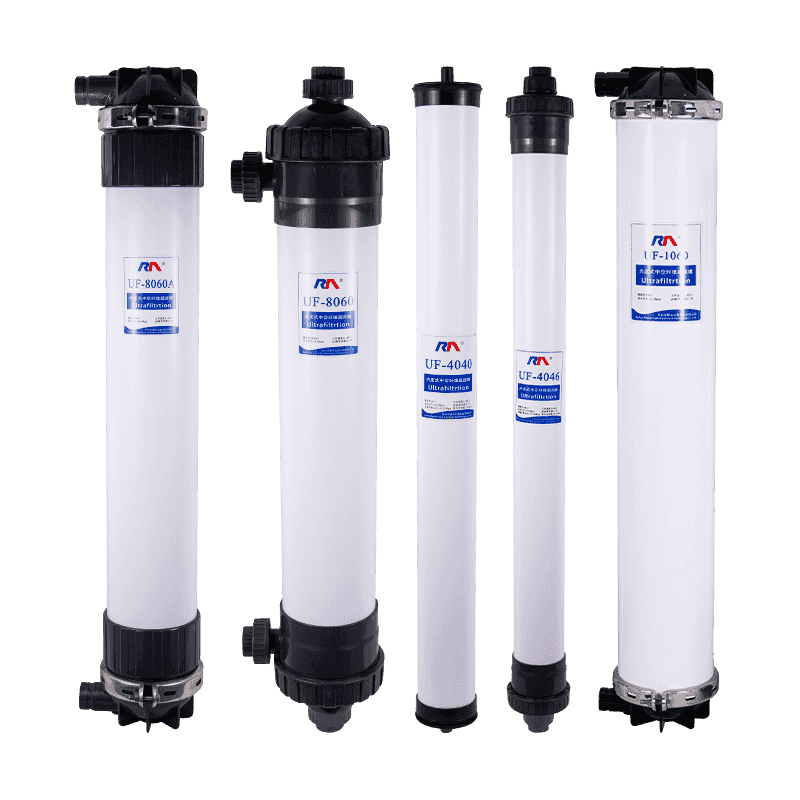

Runmo Inside-Out Ultra Filtration Membrane Elements

Using modified PAN material, the ultrafiltration membrane has outstanding separation performance, good oxidation resistance, thermal stability, good mechanical properties, and permanent hydrophilicity. Despite the advantages mentioned above, the disadvantage is that the anti-pollution performance is slightly worse. For this reason, we overcome the above shortcomings by modifying the materials and membranes, and making their performance more excellent. Membrane filament has high strength and a breakage rate of less than three thousandths:
Unique central pipe bracket with uniform filament distribution and smooth water flow can prolong the service life of the membrane filament; reliable performance, water washing, and medication washing will not affect the normal use of the membrane. According to the water quality conditions, full filtration and cross-flow filtration can be selected. Full-volume filtration has the advantages of energy saving and high water utilization rate; cross-flow filtration can discharge pollutants in time, reduce the times of membrane cleaning, and prolong the service life of membrane components. Compared with traditional filtration methods, this system has the advantages of high automation, small floor area (only 1/2 of traditional filtering methods), high filtration accuracy, unattended, and it is a good option for reverse osmosis pretreatment.

Scope of Application

It is mainly used in various ffelds of industry, such as pure water, boiler recharge water, food processing and pharmaceutical manufacturing.

  • Internal Pressure Ultrafiltration Membrane Element 4’ / 6’ Product Series

Product Model

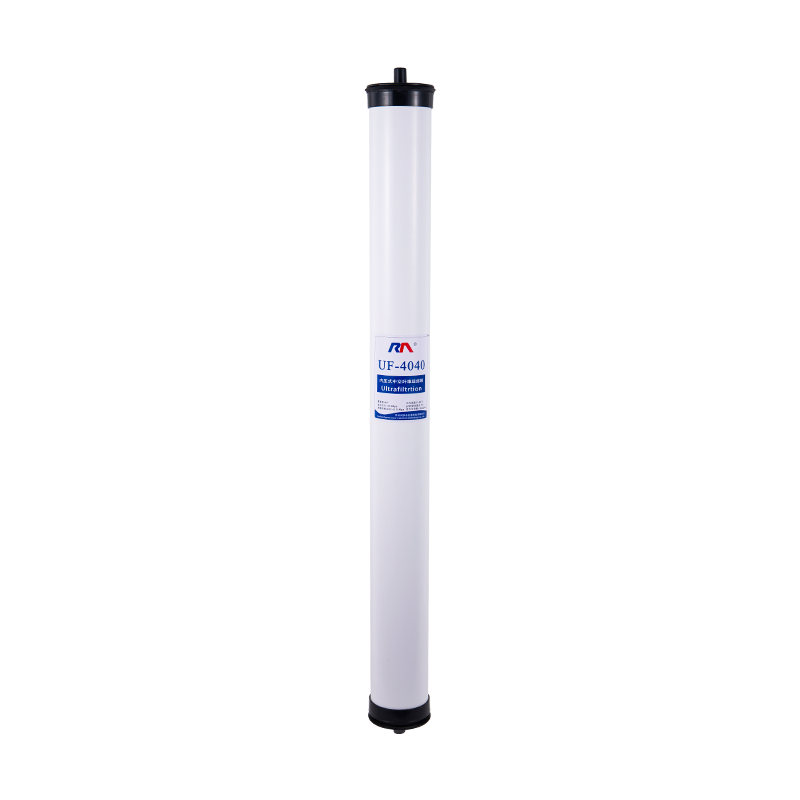

RM-UF-4040

RM-UF-4021

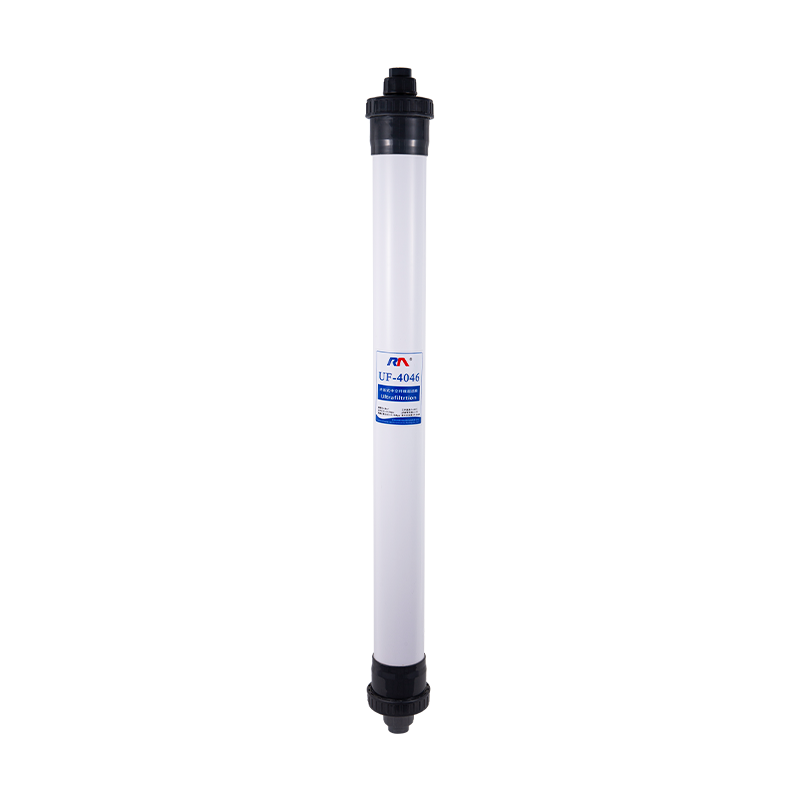

RM-UF-4046

RM-UF-4046 short

RM-UF-160B

Product Picture

A(mm)

1016

533.4

167

167

260

B(mm)

101

101

115

115

160

C(mm)

19.1

19.1

110

110

163

L1(mm)

966

483

1130

L2(mm)

1166

680

1355

Membrane area(m2 )

4

2

4.8

2.4

13.7

Design water yield m3/h,0.1MPa,25℃’

0.2

0.1

0.3

0.15

0.8

Turbidity of produced water NTU

<1

Shell material

UPVC

Cast Forms

Epoxy resin (chemistry)

Inlet/outlet connection

Membrane Shell Interface

∅32-UPVC

∅40-UPVC

Seal form and material

O-Ring/EPDM

Product weight(net/gross)

3.4/3.6

1.6/1.8

4.4/4.8

3.2/3.6

13.1/16.4



  • Internal Pressure Ultrafiltration Membrane Element 8‘ / 10’ Product Series

Product Model

RM-UF-8040

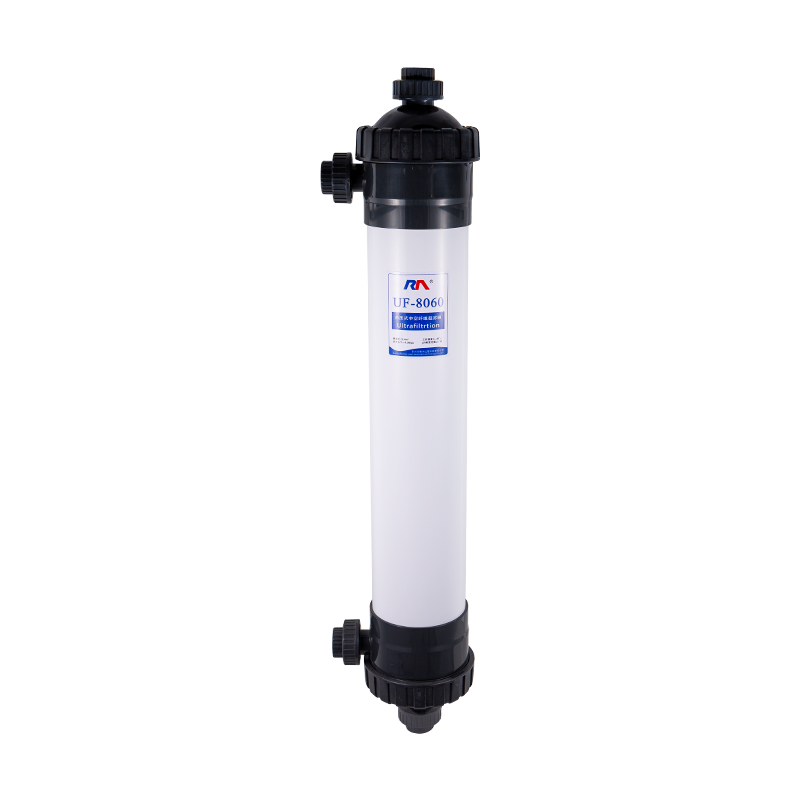

RM-UF-8060

RM-UF-8060L

RM-UF-8060A

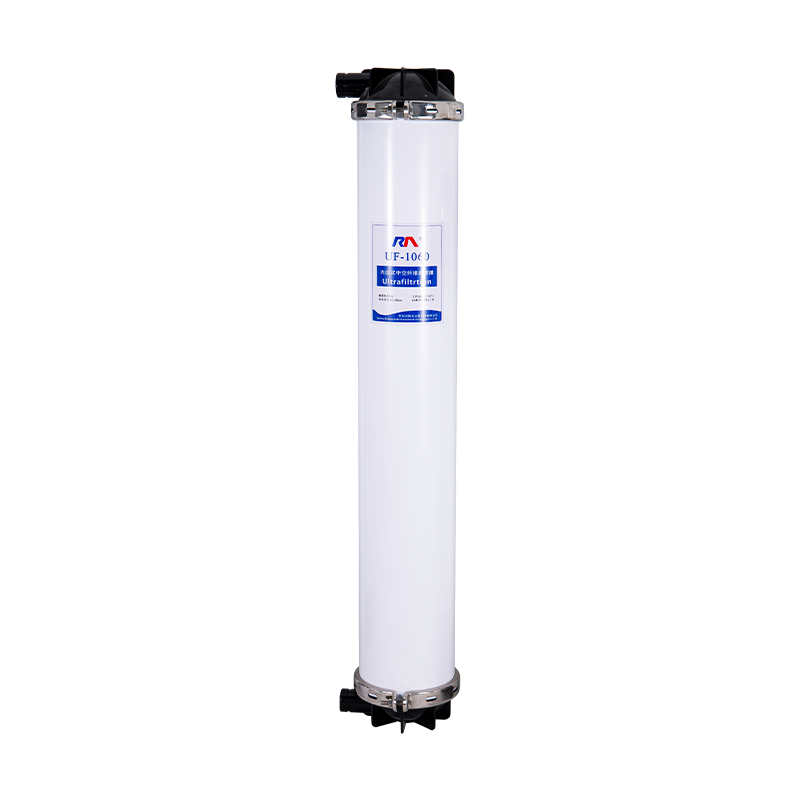

RM-UF-1060(D)

Product Picture

Size specification

A(mm)

1016

309

309

200

250

B(mm)

201.9

200

200

165

173

C(mm)

28.6

189

189

L1(mm)

995

1055

1344

1600

1614

L2(mm)

1415

1475

1430

1680

1780

Basic parameter

Membrane area (m2)

21

25

26.4

25.9

51

Design water yield m3/h,0.1MPa,25℃’.

1.2

1.25

1. 3

1. 3

2.5

Turbidity of produced water NTU

<1

Module specifications

Shell material

UPVC

Cast Forms

Epoxy resin (chemistry)

Inlet/outlet connection

Membrane Shell Interface

∅50-UPVC

DN50 Ferrule/DN65 Ferrule

Seal form and material

0-ring/EPDM

Product weight(net/gross)

15.7/17.9

25. 2/28. 7

25. 7/29. 2

25. 2/28. 7

42. 8/48. 5
