UF(Ultrafiltration) Membranes(PVDF)

Download
Brief Introduction

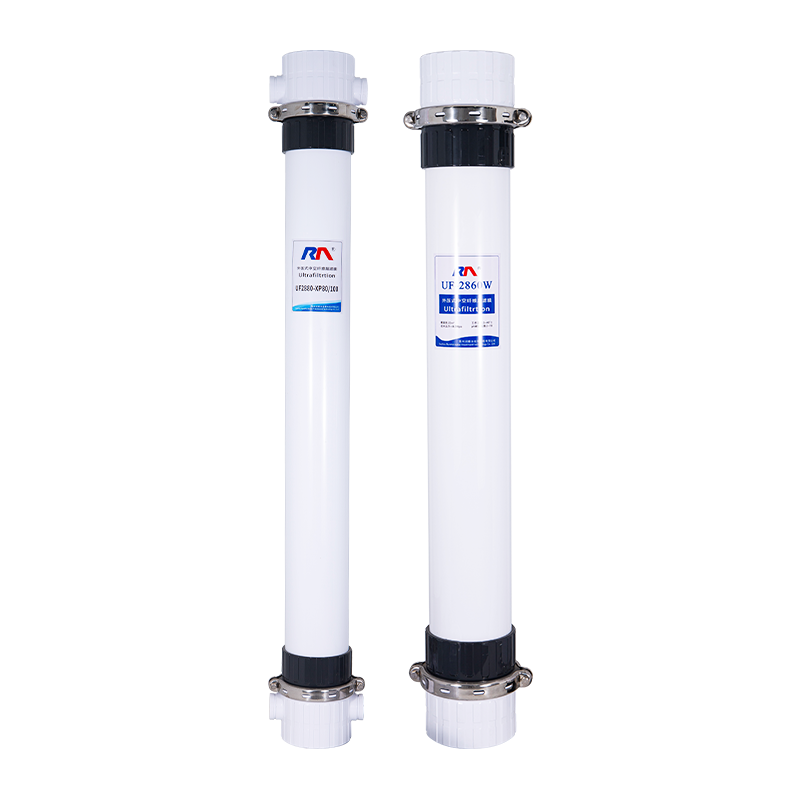

Runmo Outside-In Ultra Filtration Membrane Elements

Polyvinylidene fluoride (PVDF) is used as the material, and its greatest characteristic is its high chemical stability. The chemical stability determines its outstanding antioxidant ability and acid and alkali resistance.
In order to ensure the normal operation of membrane components and stabilize water flux, it is necessary to clean the membrane regularly. The most effective method is oxidant cleaning. But oxidants can damage the membranes. The ability of polyvinylidene fluoride (PVDF) to withstand oxidants (sodium hypochlorite, etc.) is more than 10 times that of polyethersulfone, polysulfone, and other materials, thus greatly prolonging its service life. Polyvinylidene fluoride (PVDF) film also has strong flexibility. The results of the practical case investigation show that the PVDF film has the advantage of a minimum breakage rate. It has been more and more widely used in the field of sewage treatment. Sketch of characteristics of Runmo PVDF membrane module :
1. High antioxidant and cleaning resistance: High-quality polyvinylidene fluoride material determines the enhanced chemical stability of membrane products, and the high chemical stability of the membrane makes the membrane resistant to high concentration oxidant cleaning, thus effectively preventing microbial reproduction such as bacteria;
2. High Flux: High Porosity of Products, High Flux of Components;
3. High Strength: Good flexibility: Membrane wire has high strength and good flexibility. It is not easy to break during cleaning;
4. High pollution resistance: through hydrophilic modification, the product's pollution resistance is greatly improved;
5. Good Water quality : Ultrafiltration membrane has a small nominal aperture, so it can remove almost all suspended particles, microorganisms, colloids, pathogens and bacteria in the application of this product;
6. Long service life: Components usually adopt external pressure structure which is not easy to plug. They have larger filtering area and higher pollution interception, easy to clean, and more thorough. They can remove the fouling on the membrane surface in time, so that the service life of the membrane is longer.

Scope of Application

It is mainly used in various ffelds of industry, such as pure water, boiler recharge water, food processing and pharmaceutical manufacturing.

  • External Pressure Ultrafiltration Membrane Element Product Series

Product Model

RM-UF-4046W

RM-UF-8060W

RM-UF-2660W

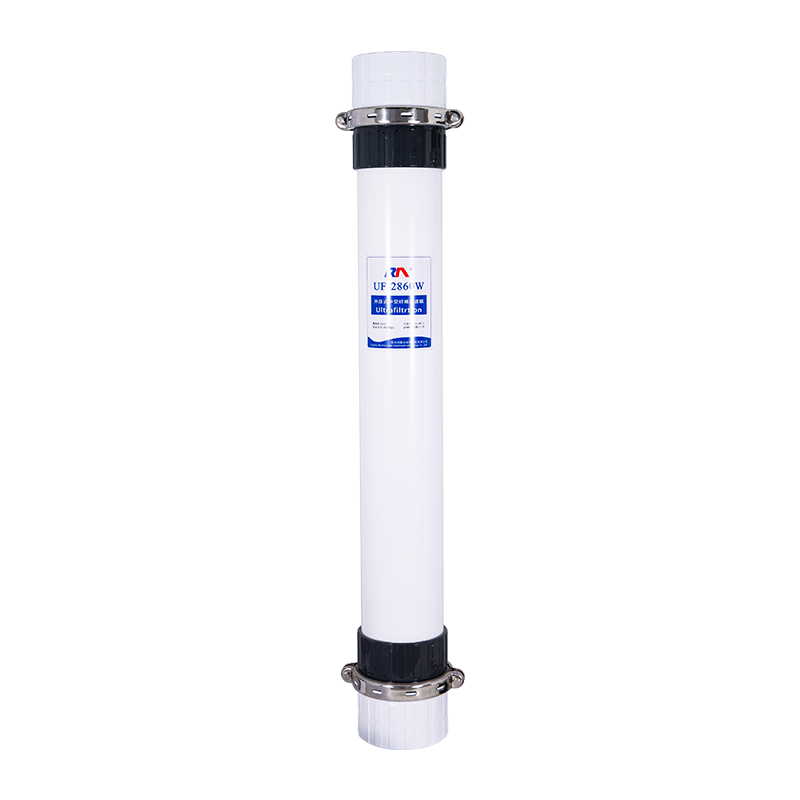

RM-UF-2860W

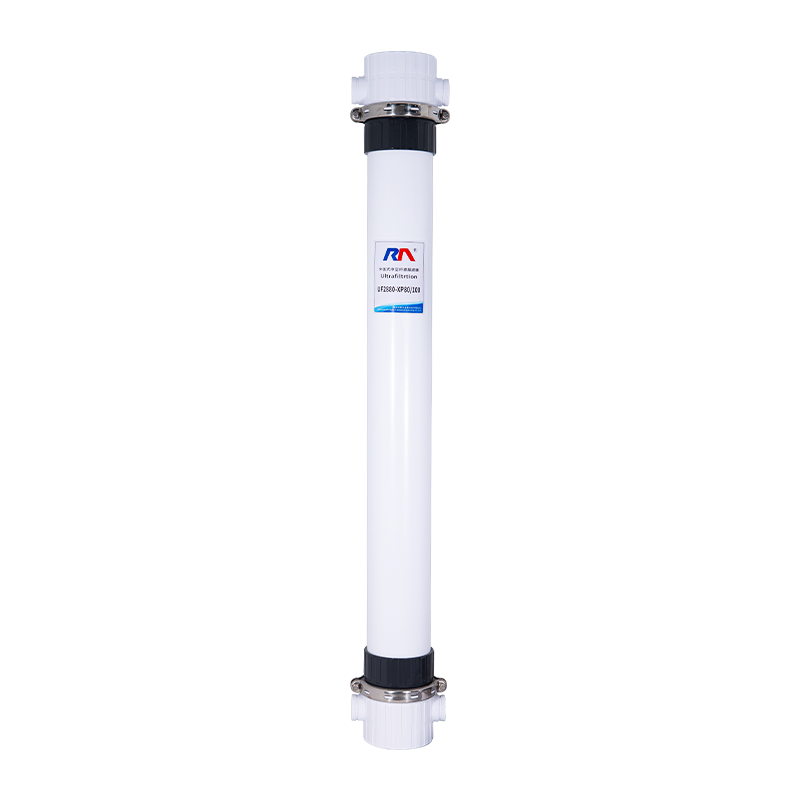

RM-UF-2880W

Product Picture

Size specification

A(mm)

167

302

32

50

50

B(mm)

115

200

165

225

225

C(mm)

110

183.5

125

180

180

L1(mm)

966

995

1610

1630

2130

L2(mm)

1166

1415

1500

1500

2000

L3(mm)

1860

1860

2360

Basic parameter

Membrane area (m2)

6

34.9

33

55

75

Design water yield m3/h,0.1MPa,25℃

0.3

1.7

1.6

2.7

3.8

Turbidity of produced water NTU

<1

Module specifications

Shell material

UPVC

Cast Forms

Epoxy resin (chemistry)

Inlet/outlet connection

0 32-UPVC

0 50-UPVC

DN50/DN32

DN50 ferrule

DN50 ferrule

Seal form and material

O-ring/EPDM

Product weight(net/gross)

4. 4/4. 8

25. 2/28. 7

25/28. 5

42. 5/50. 5

43/51
